Two different types of speed sensors have been supplied with the COMPUSHIFT Mini kit.

The newer style has a sensor and small section of speedometer cable, and requires no assembly.  If you have one of these, skip to the next section.

If you have the older type, then a little bit of preparation is required before installing the speed sensor on the transmission.

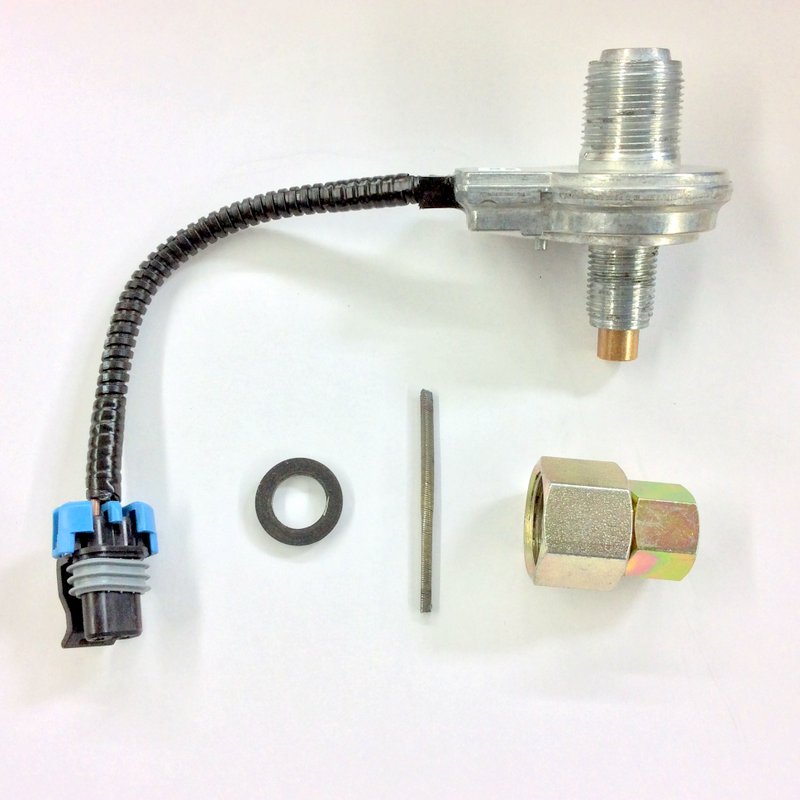

The speed sensor kit has four pieces:

  • The sensor
  • A small section of drive cable
  • A washer
  • A cable nut

The assembly is straightforward.

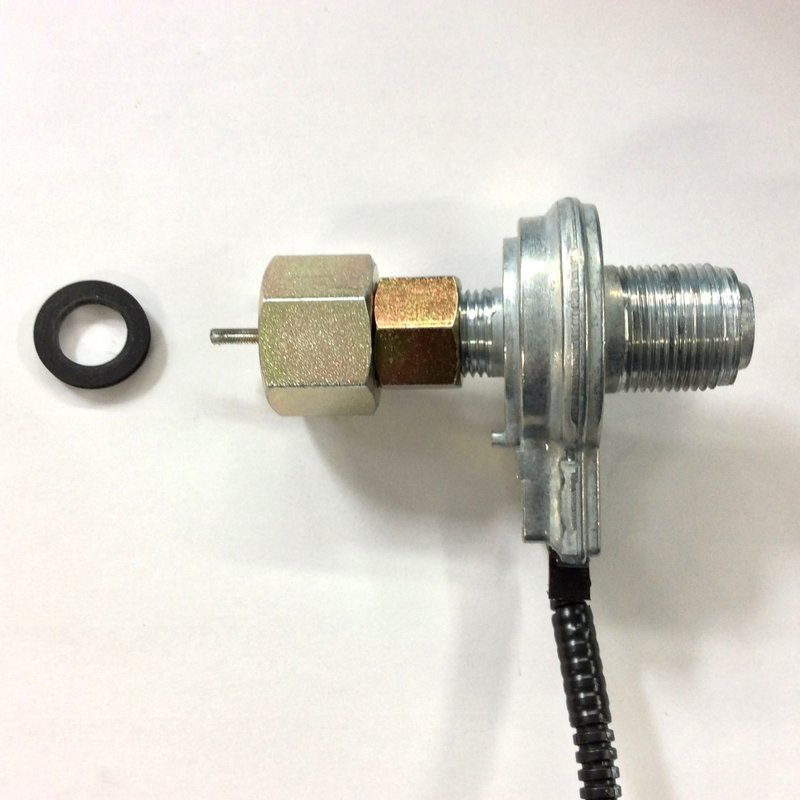

The small end of the nut attaches to the small end of the speed sensor.

The section of drive cable goes into the speed sensor through the nut.

The washer goes into the large end of the nut, leaving the drive cable protruding.

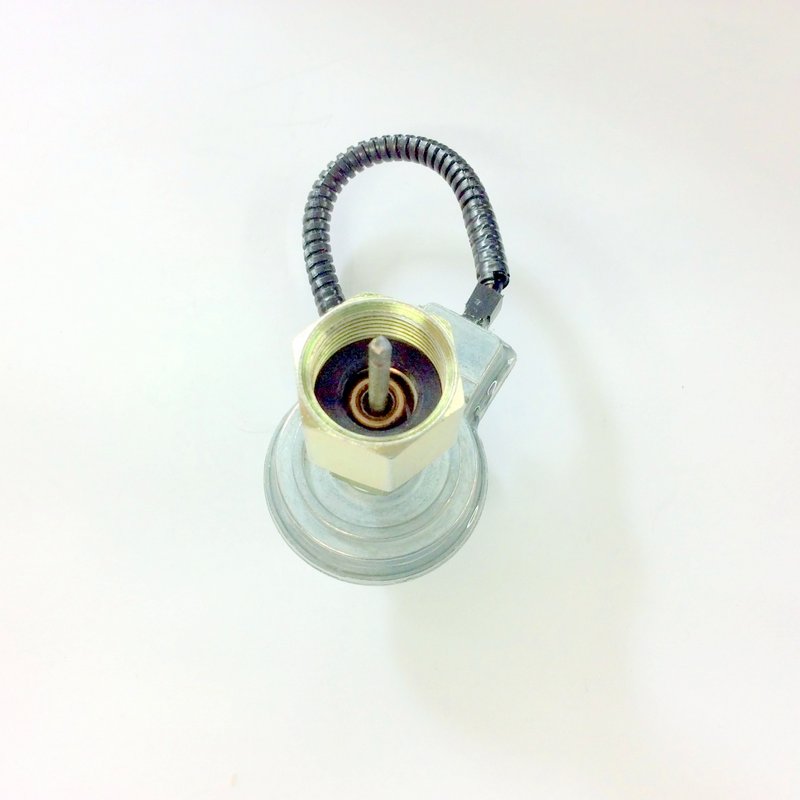

The finished assembly looks like this:
