COMPUSHIFT Sport Nissan RE4 Connector Kit 35602 Splicing Instructions

Overview

Please note these are the instructions for installing HGM part number 35602 which mates with harness 35601. These harnesses and parts use Aptiv Metri-Pack.

To complete this successfully you will need the appropriate wire crimping tool, please refer to the back of these instructions for visual references of the style of crimper required (such as Delphi 1424b) and the method to crimp each terminal correctly.

Please note - there are also extra terminals in each packet, please take your time and understand the crimping process prior to attempting to use the pins as they are single use and will have to be cut off if incorrectly connected.

Hot engines, transmissions and exhausts can cause serious injury.  Before accessing the appropriate connections allow sufficient time for the engine and transmission to cool.

Please read through all of the instructions carefully before proceeding. If any of the information does not appear correct or the diagrams don’t match your vehicle, please contact HGM.

RE4 Transmission Overview

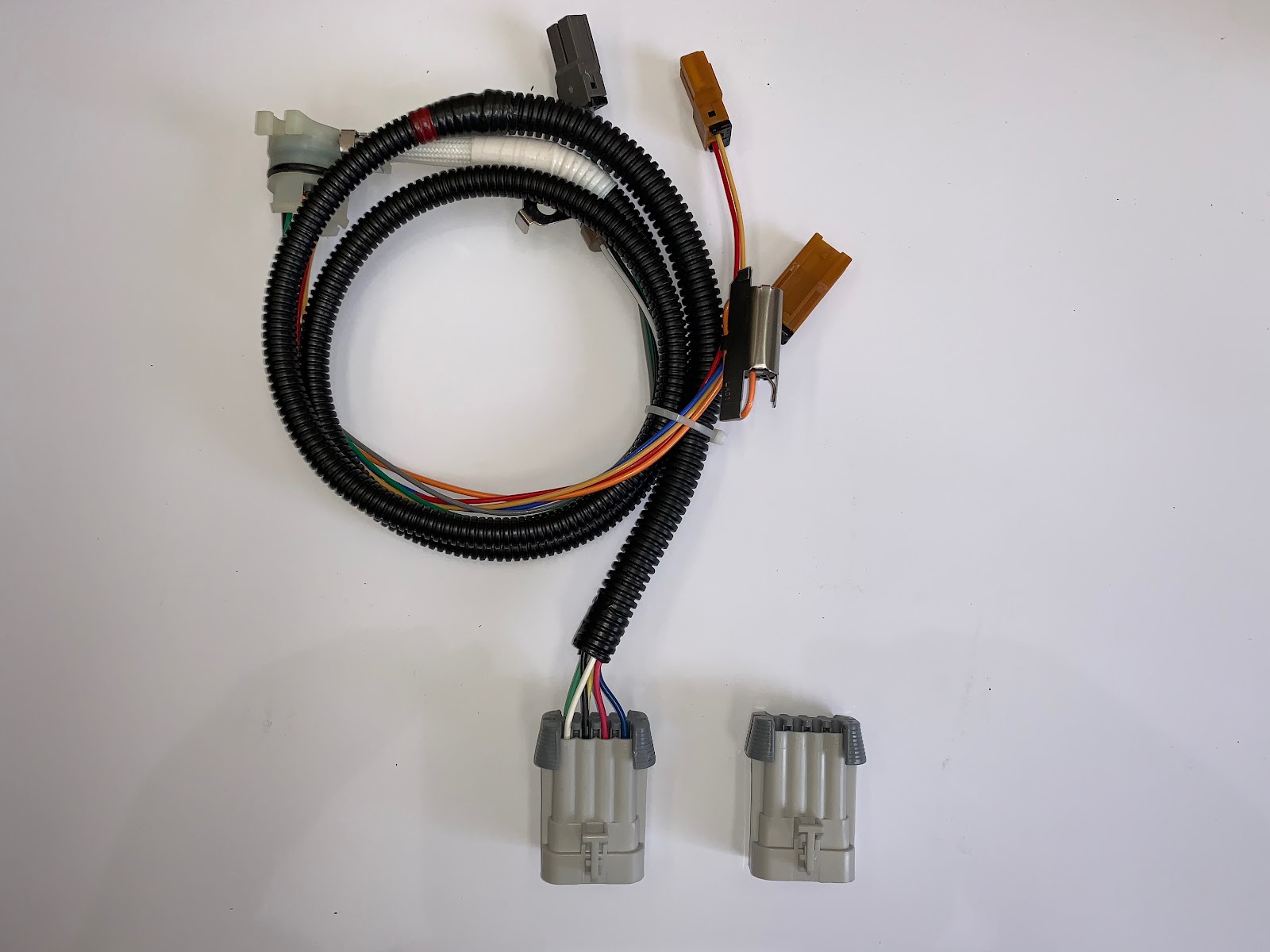

Review the pictures below to identify the components you will be working with.

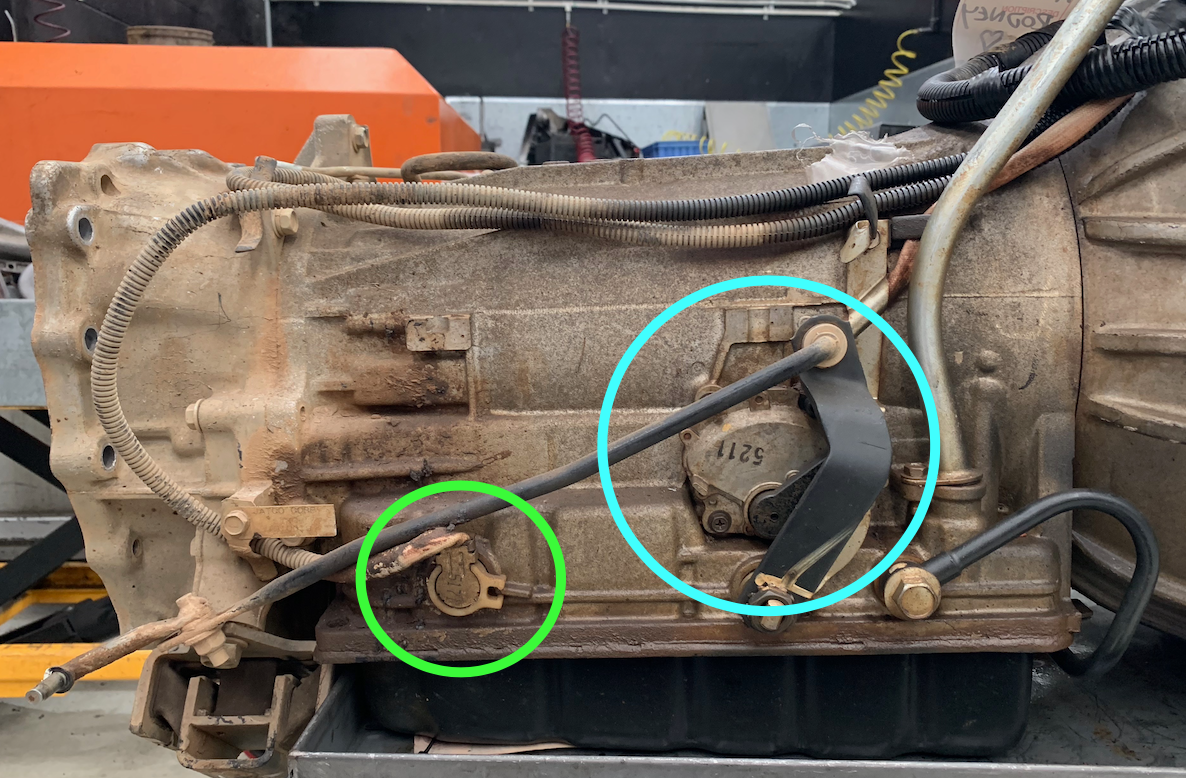

Sensor locations

Internal Loom Lever Switch

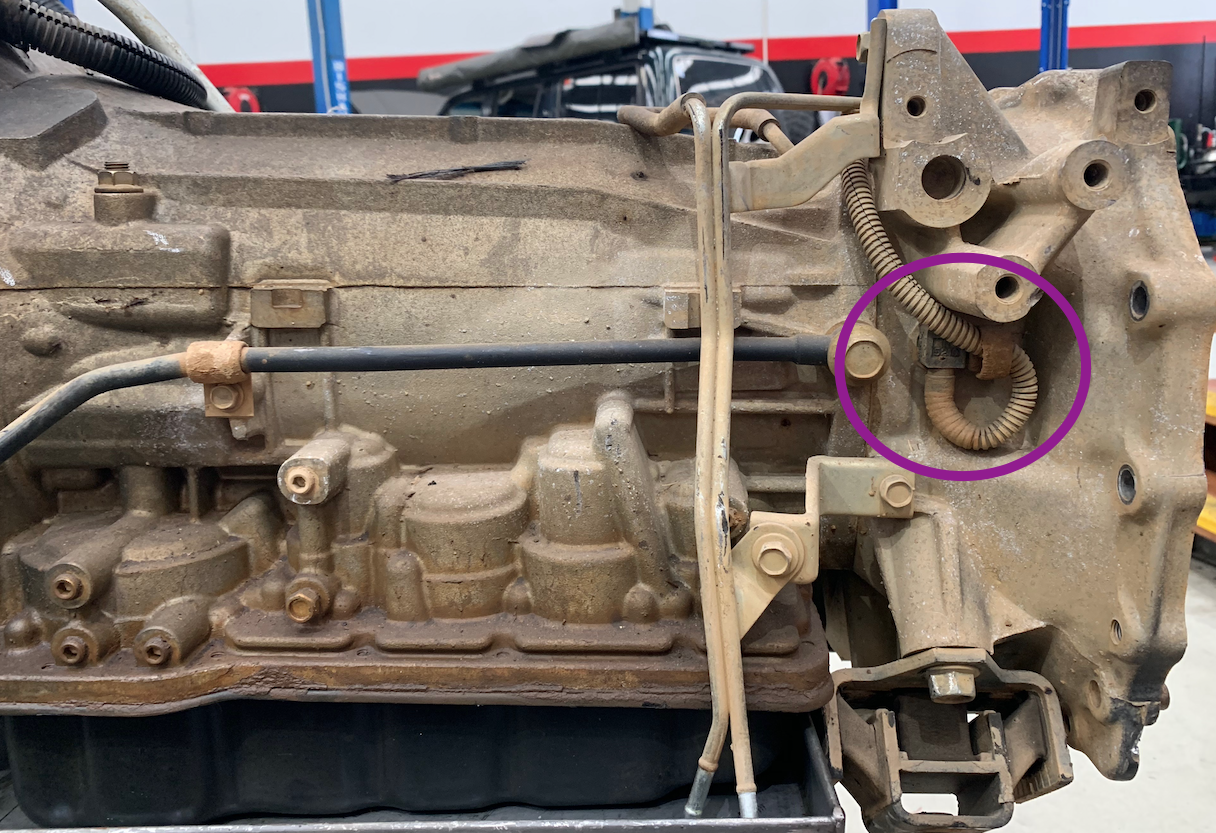

Output Speed Sensor

Connector Installation

Output Speed Sensor

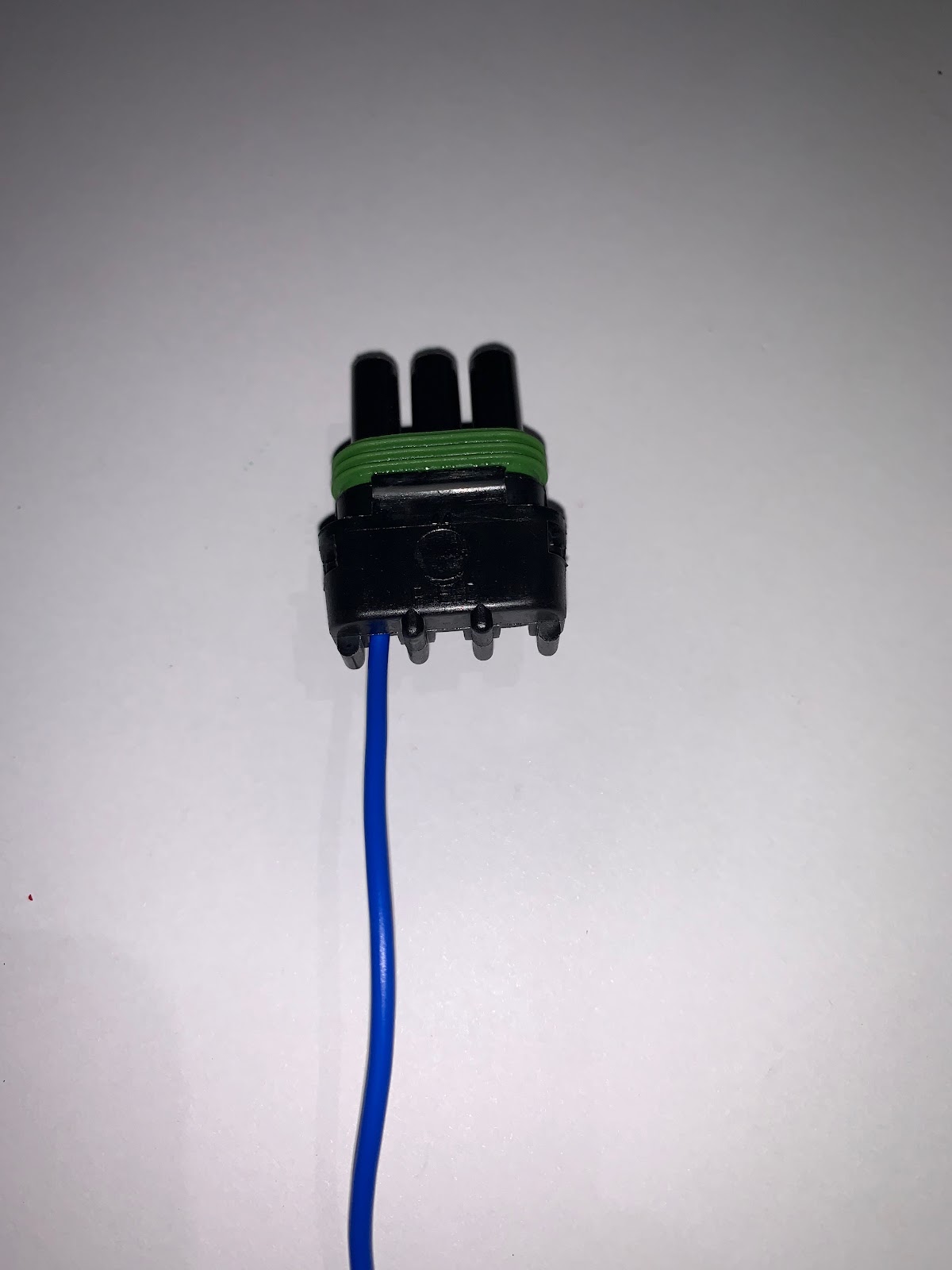

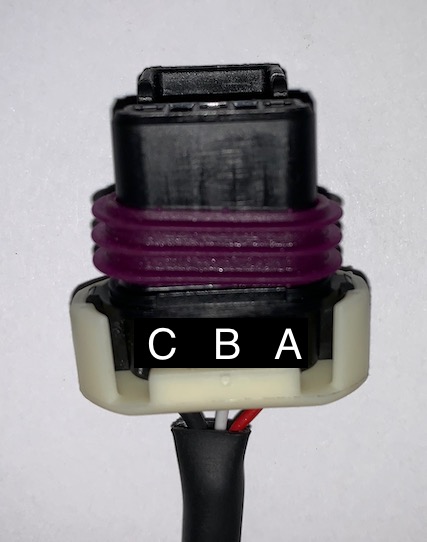

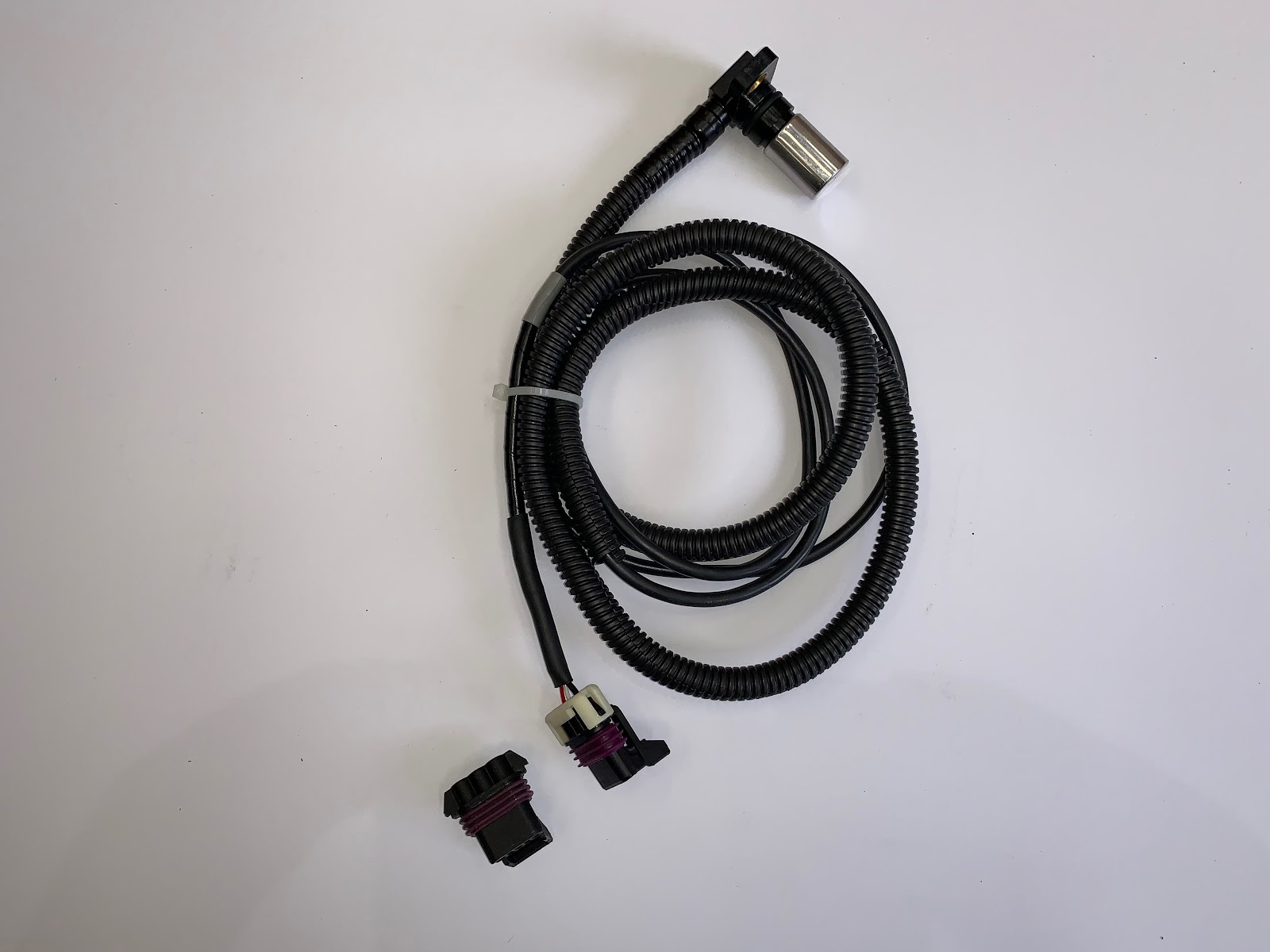

The output speed connector will require three wires to be installed in the provided 1x3 connector, identified by the purple rubber seal.

Refer to the splice table below.

WIRE COLOR

TERMINAL

RED

A

WHITE

B

BLACK

C

Internal Loom

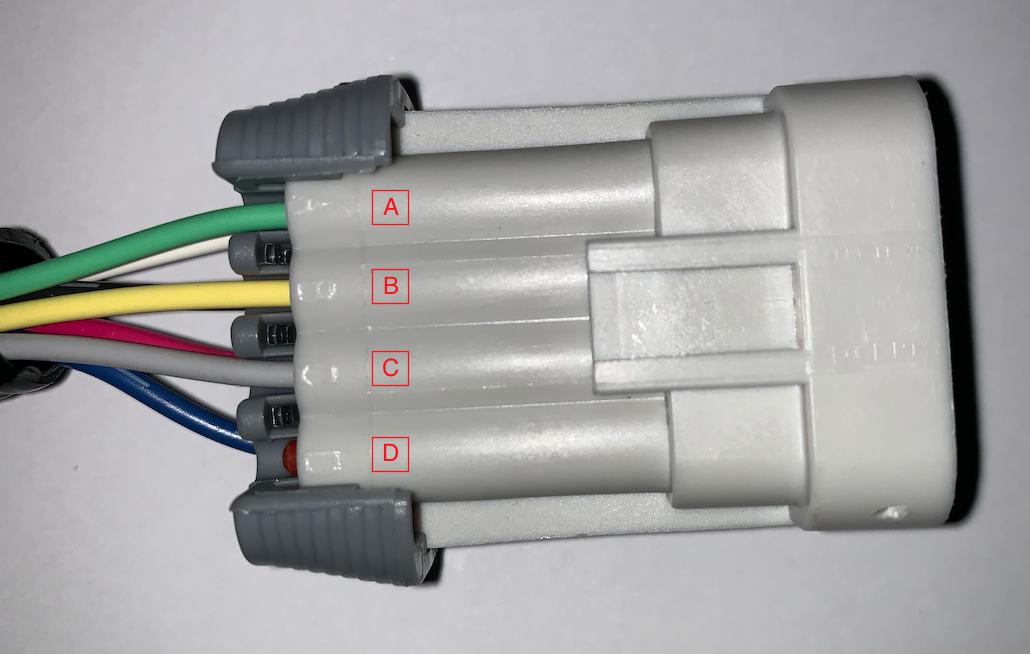

The RE4 Internal Loom requires splicing of 7 pins. These wires feed the temp sensor and solenoid connections. Refer to the splice table below.

WIRE COLOR

TERMINAL

GREEN

A

YELLOW

B

GREY

C

D

BLUE

E

PINK

F

BLACK

G

WHITE

H

Side 2

Shift Lever Switch

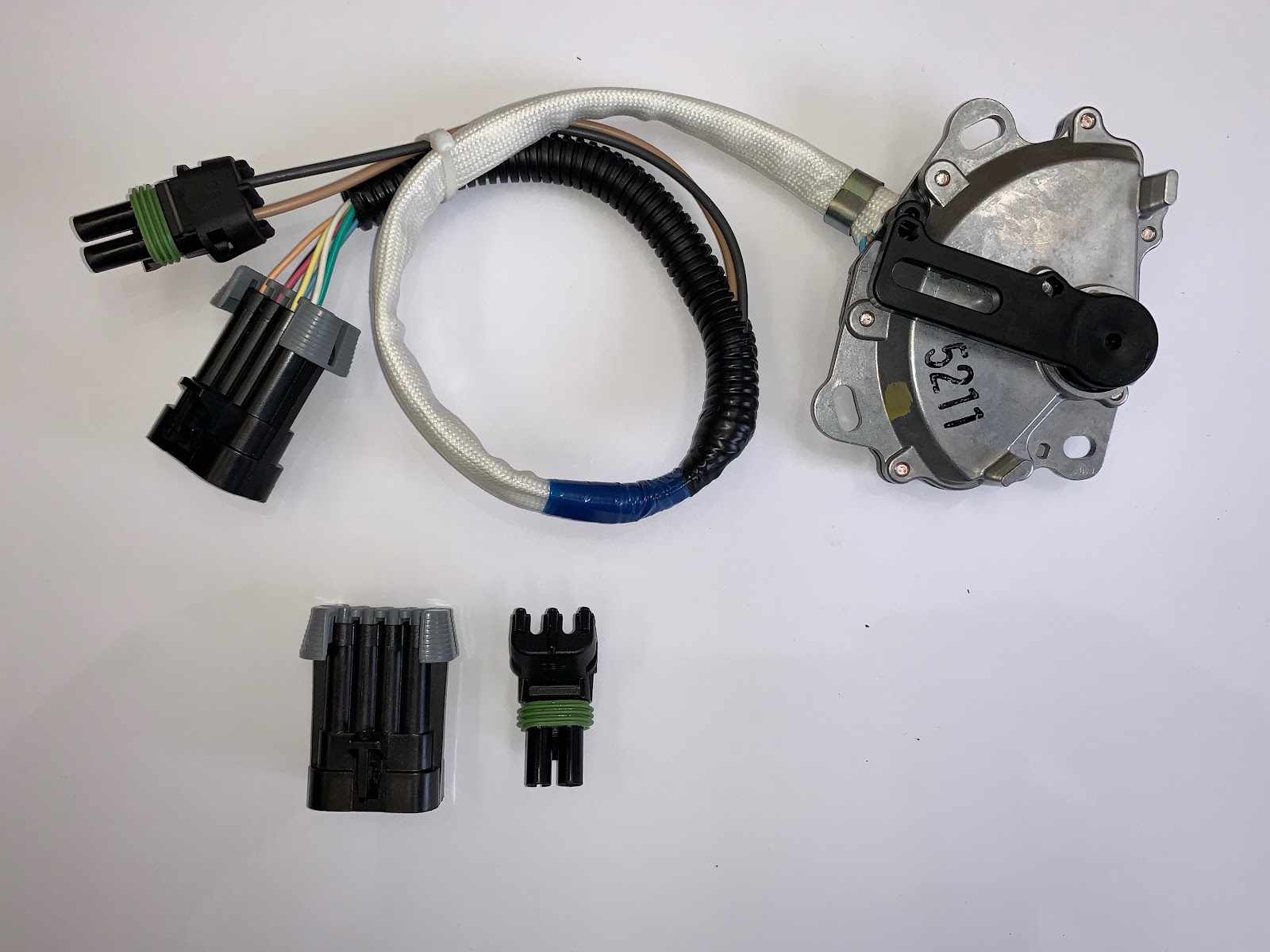

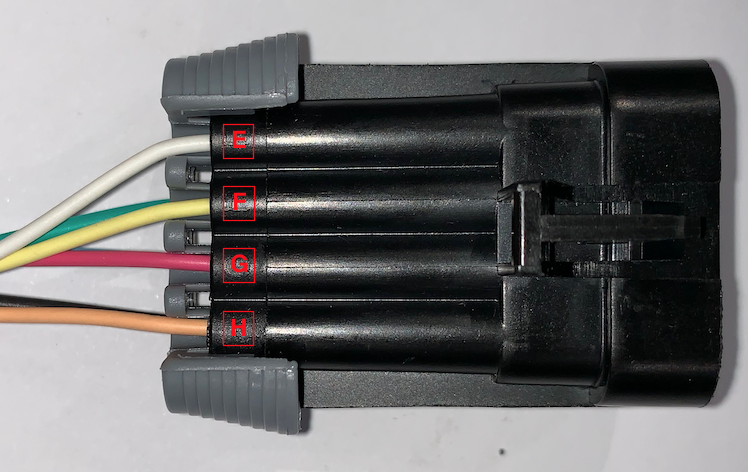

The Shift Lever Switch wiring has two connectors to install, one two pin for the larger gauge wires and also connector for a 7 pin connector for the smaller gauge wires.

WIRE COLOR

TERMINAL

BLACK

A

BLUE

B

GREEN

C

D

WHITE

E

YELLOW

F

RED

G

ORANGE

H

Side 2

WIRE COLOR

TERMINAL

ORANGE

A

BLACK

B

Crimping the Wires

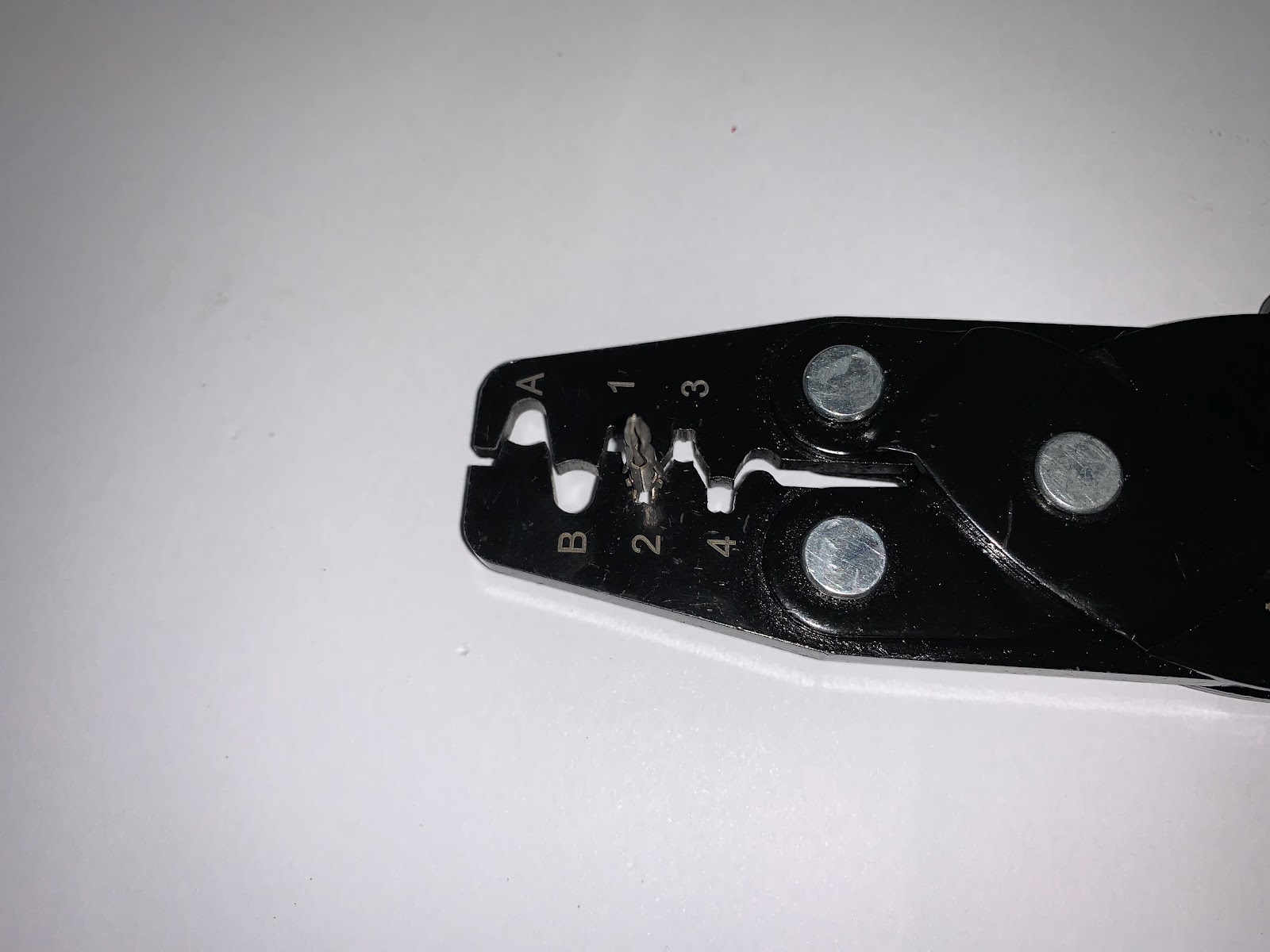

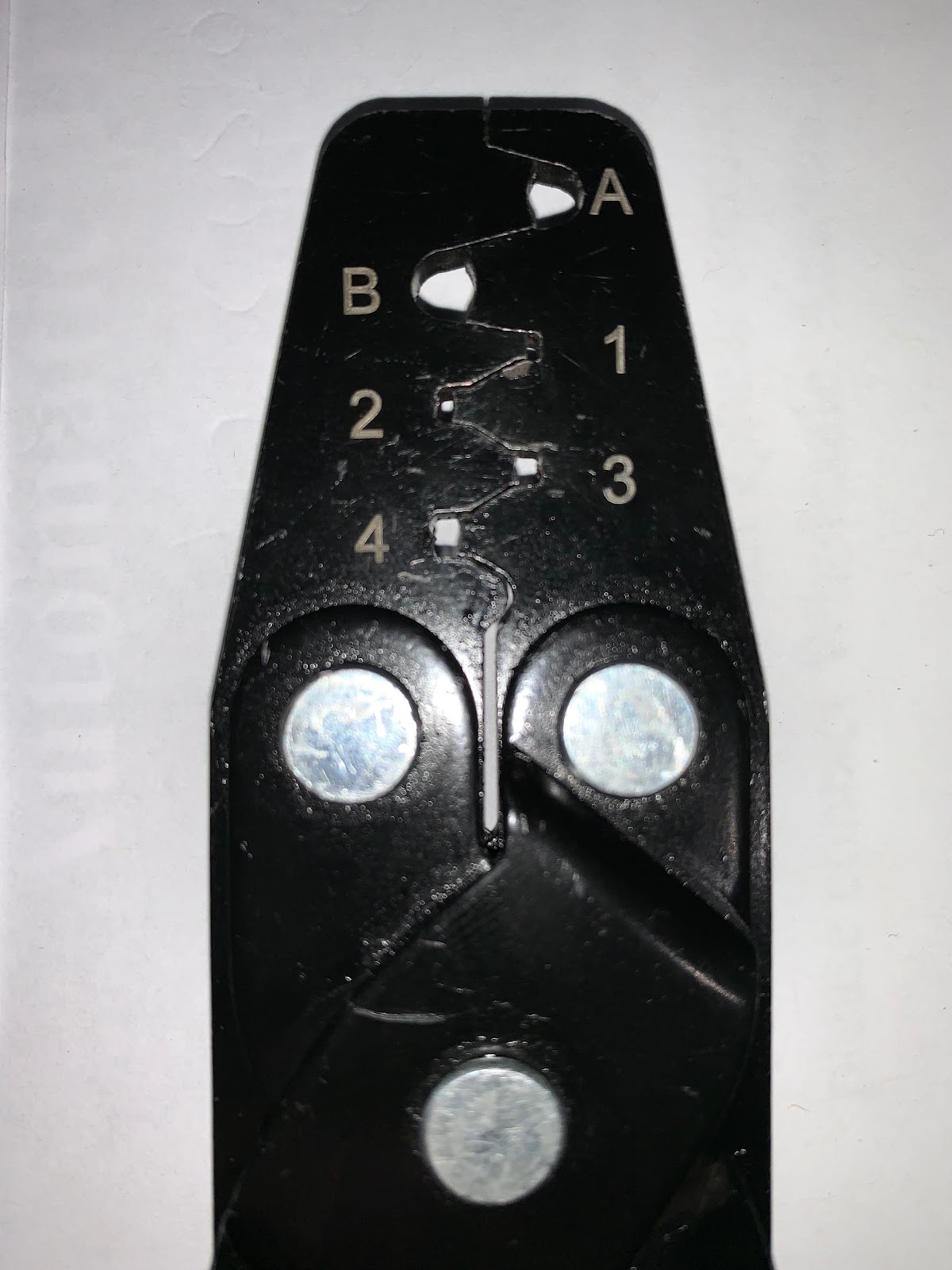

EXAMPLE WIRE CRIMPERS (Delphi 1424B in photos)


CRIMPING PROCESS

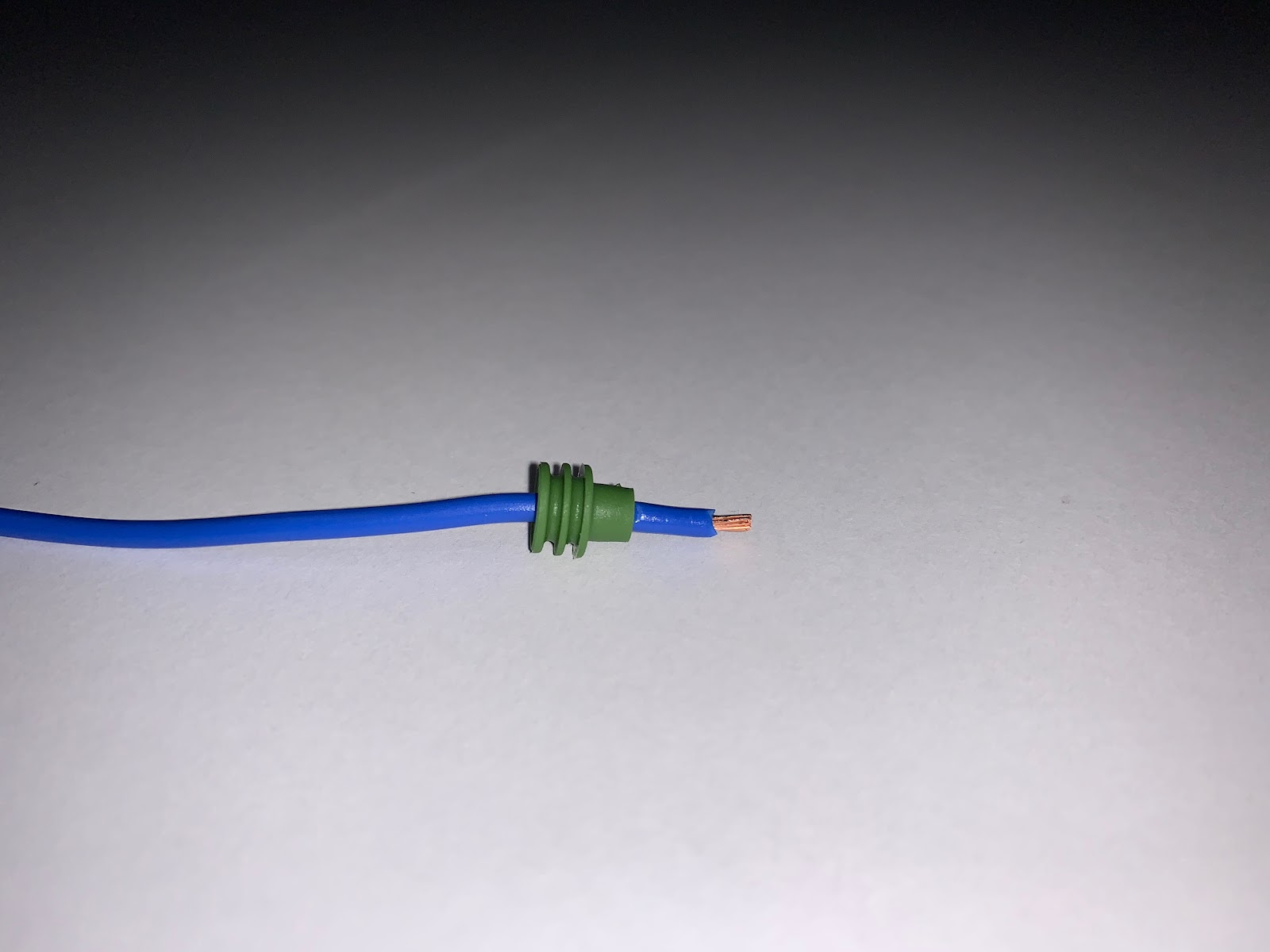

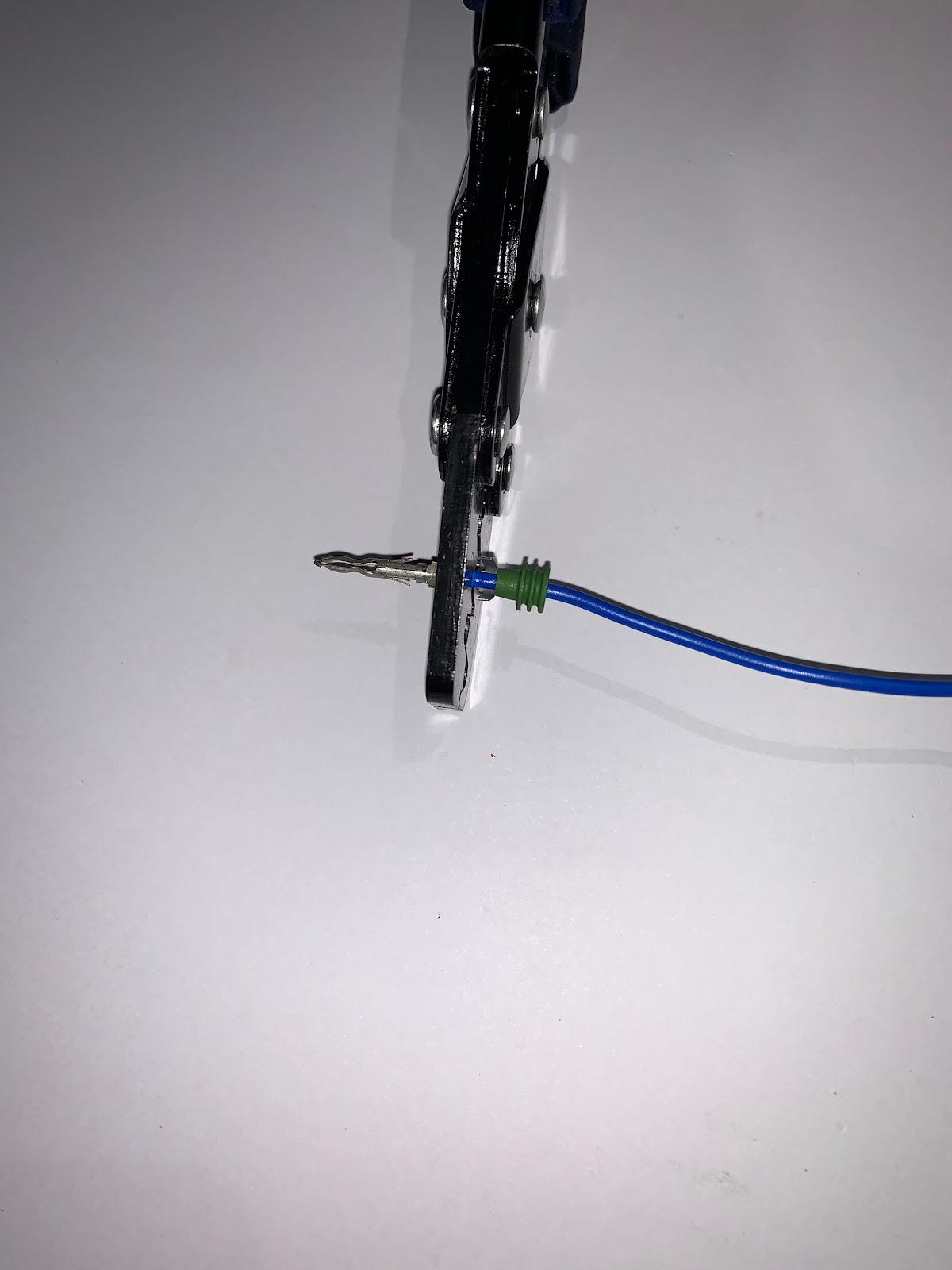

Stripped wire with seal applied. Place the water and dust grommet over the exposed wire as shown in the photo below.

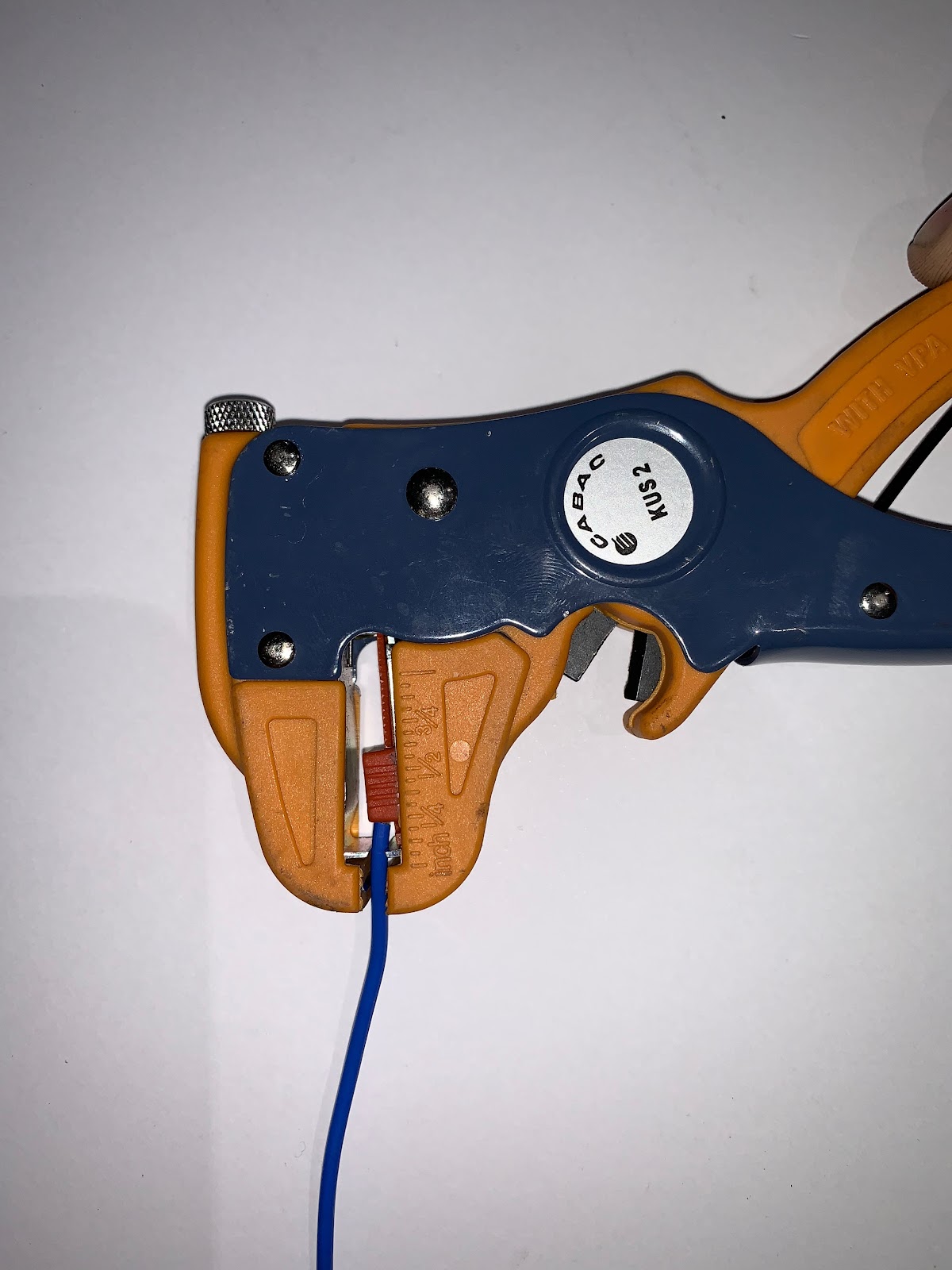

Using wire strippers, remove 5mm / .25” of insulation.

Secure the pin (remember to identify male and female depending of which side of the connector you’re working on

.

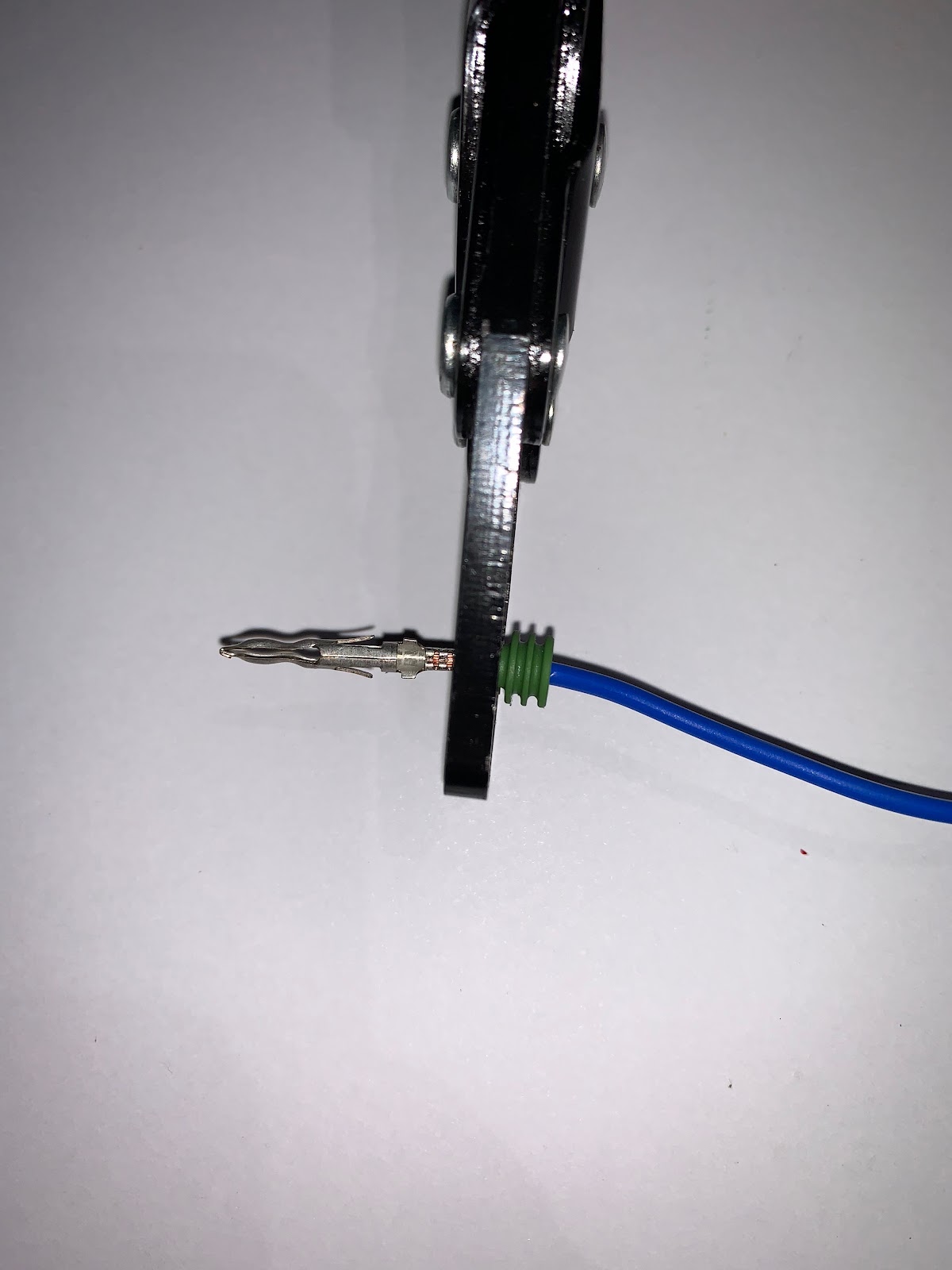

Crimp the forward terminal clamps over the exposed wire (do not crimp over the insulation).

Crimp the rear clamps over the water and dust grommet, ensure the tabs fold over each other when applying final pressure.

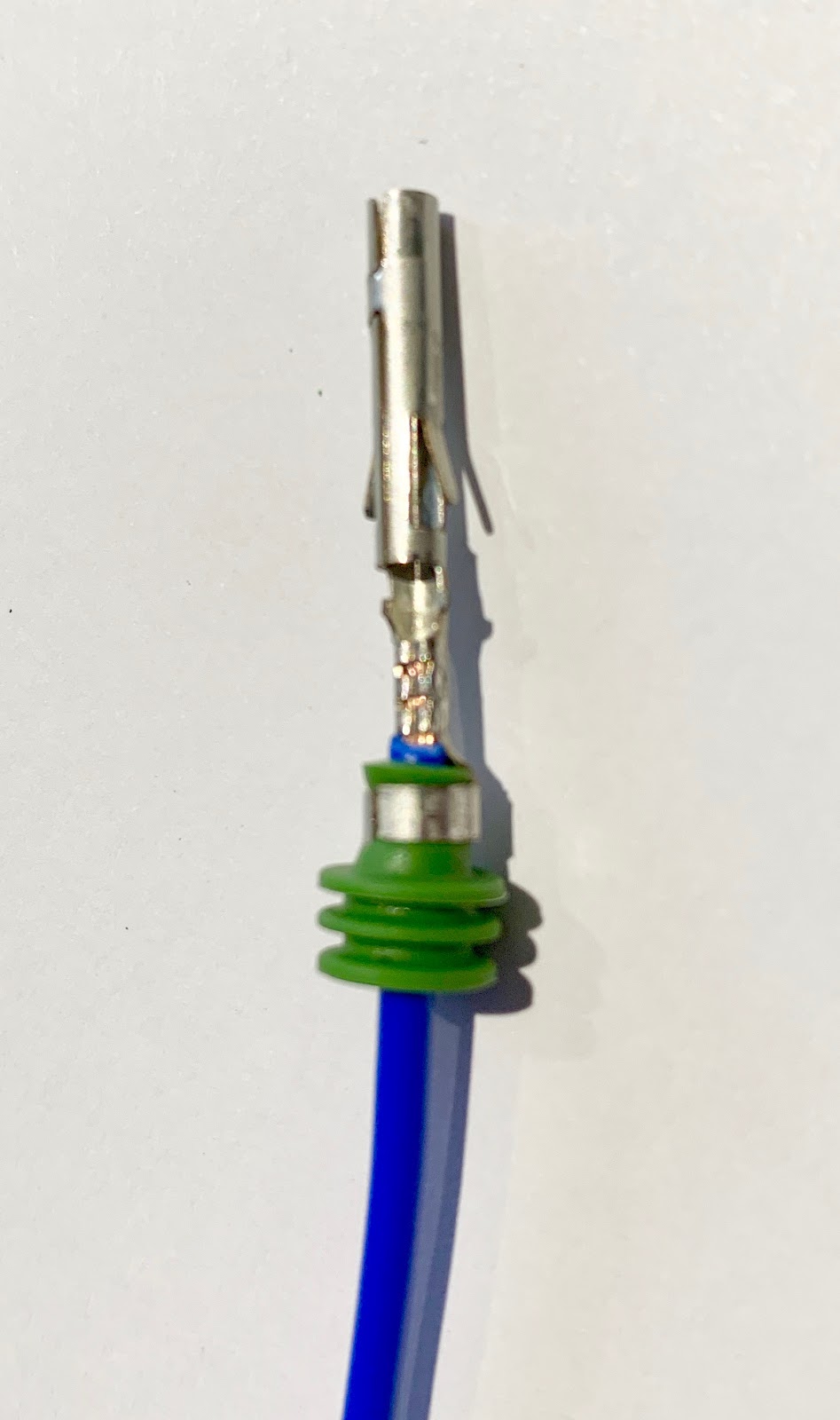

Confirm the forward clamps are folded securely over the internal wiring and the rear clamp has secured both the weather grommet and the wire’s sheath.

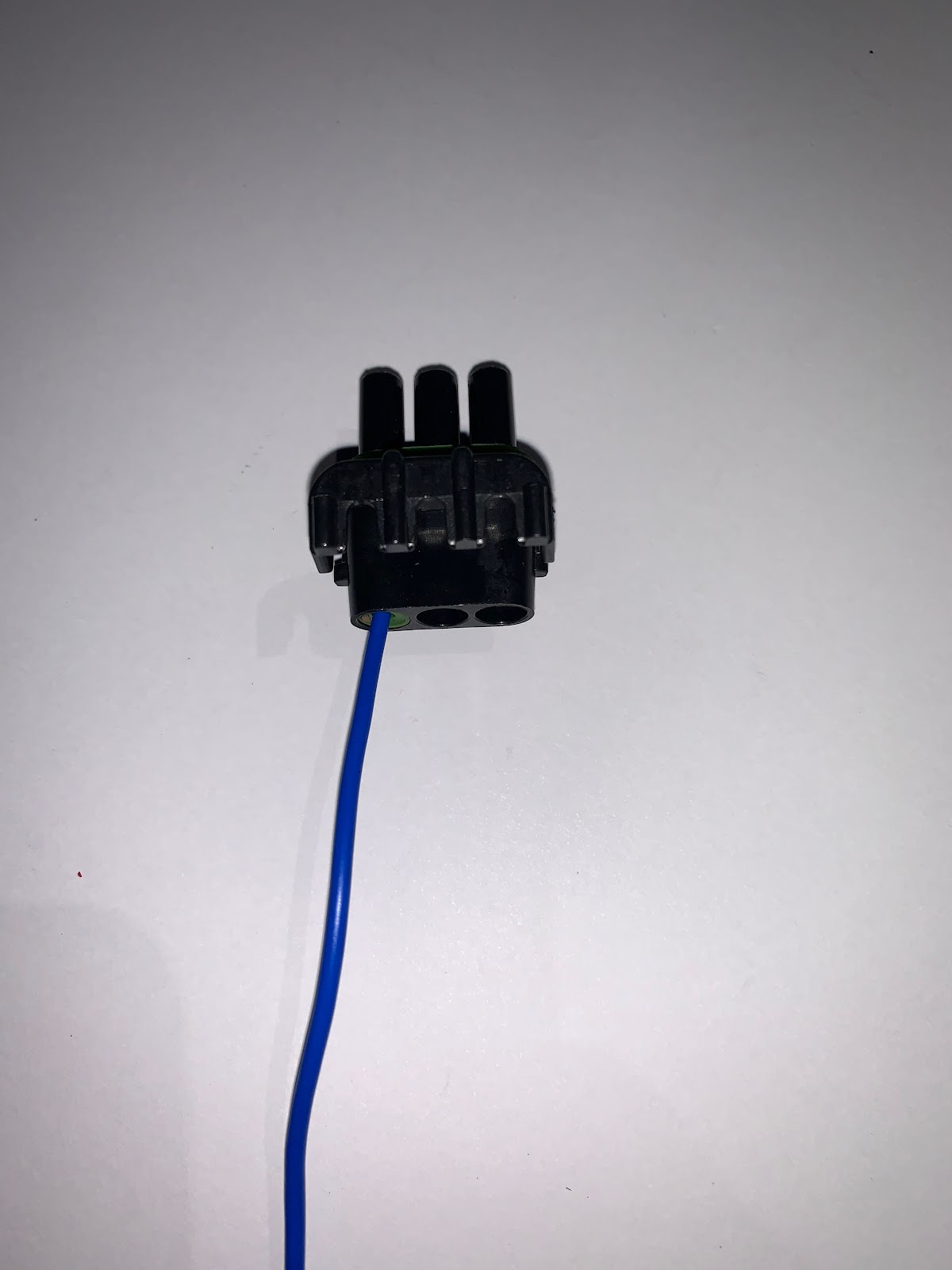

Insert the crimped wire into the appropriate locator (see reference tables). You will hear a click when the pin is correctly seated, apply light pressure backwards to ensure the pin is secure.

Once ALL pins have been installed, fold the overlock into the final position.

The Delphi connector is now ready to connect with its partner connector.

.
