COMPUSHIFT CAD Drawings

COMPUSHIFT Sport and COMPUSHIFT Pro

In this section are solid models and CAD drawings of the COMPUSHIFT Sport and COMPUSHIFT Pro case.

Without the mated Molex connector
With the mated Molex Connector

Solid models in STEP format, along with the 2D drawings can down downloaded with this link.

Drill Template

You may download and print the PDF 1:1 scale drawing below as a drill template. The holes are sized for clearance for an #12 screw (US) or M5 (metric) at .22”/5.5mm. Fiducial marks are in the center of the holes for reference. Please use the included plastic washers between the fastener and the case to avoid damage.

https://api.media.atlassian.com/file/05ad01ce-9da7-4790-9a7c-56f126d8be9e/image?token=eyJhbGciOiJIUzI1NiJ9.eyJpc3MiOiJjNTViYTg1Yi1kYzRmLTRkNzUtOWMzNi01MWY3NzJlODU5ODciLCJhY2Nlc3MiOnsidXJuOmZpbGVzdG9yZTpmaWxlOjA1YWQwMWNlLTlkYTctNDc5MC05YTdjLTU2ZjEyNmQ4YmU5ZSI6WyJyZWFkIl19LCJleHAiOjE3Njk2Nzg1MjYsIm5iZiI6MTc2OTY3NTUyNiwiYWFJZCI6IjVkZTdkOGUzYmE2MGUxMGNmZDY4MDc3ZSIsImh0dHBzOi8vaWQuYXRsYXNzaWFuLmNvbS9hcHBBY2NyZWRpdGVkIjpmYWxzZX0.AUNSvWL_29r6gV_Q403vqB6vv4Nqd7GIP_RWKYDz7kY&client=c55ba85b-dc4f-4d75-9c36-51f772e85987&name=CS3%20Case%20Drill%20Template.pdf

CS3 Case Drill Template.pdf

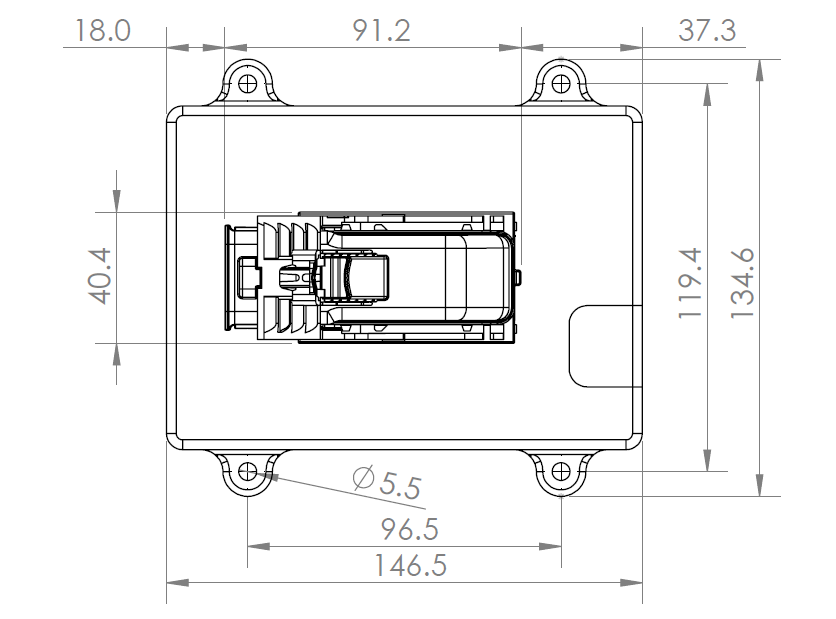

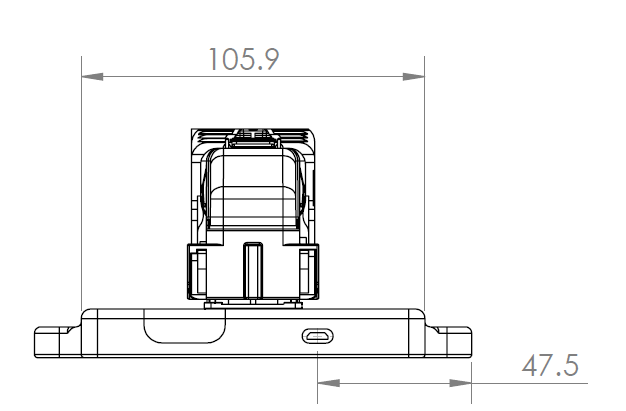

2D Drawings

All dimensions in the drawings below are in mm.

COMPUSHIFT Display

Click here to download a STEP model of the display.

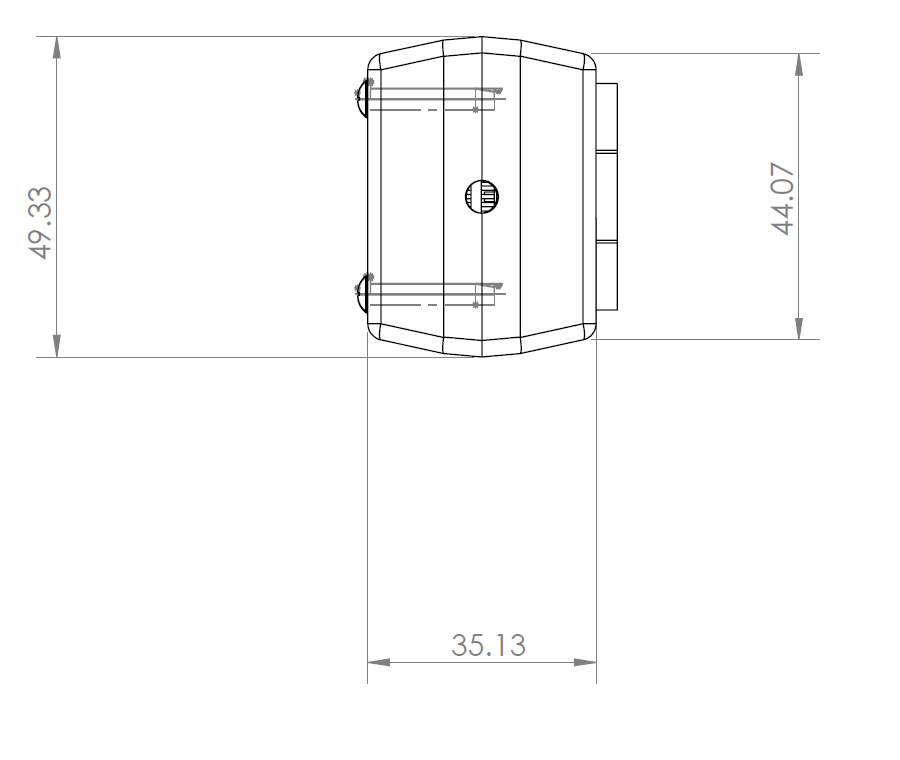

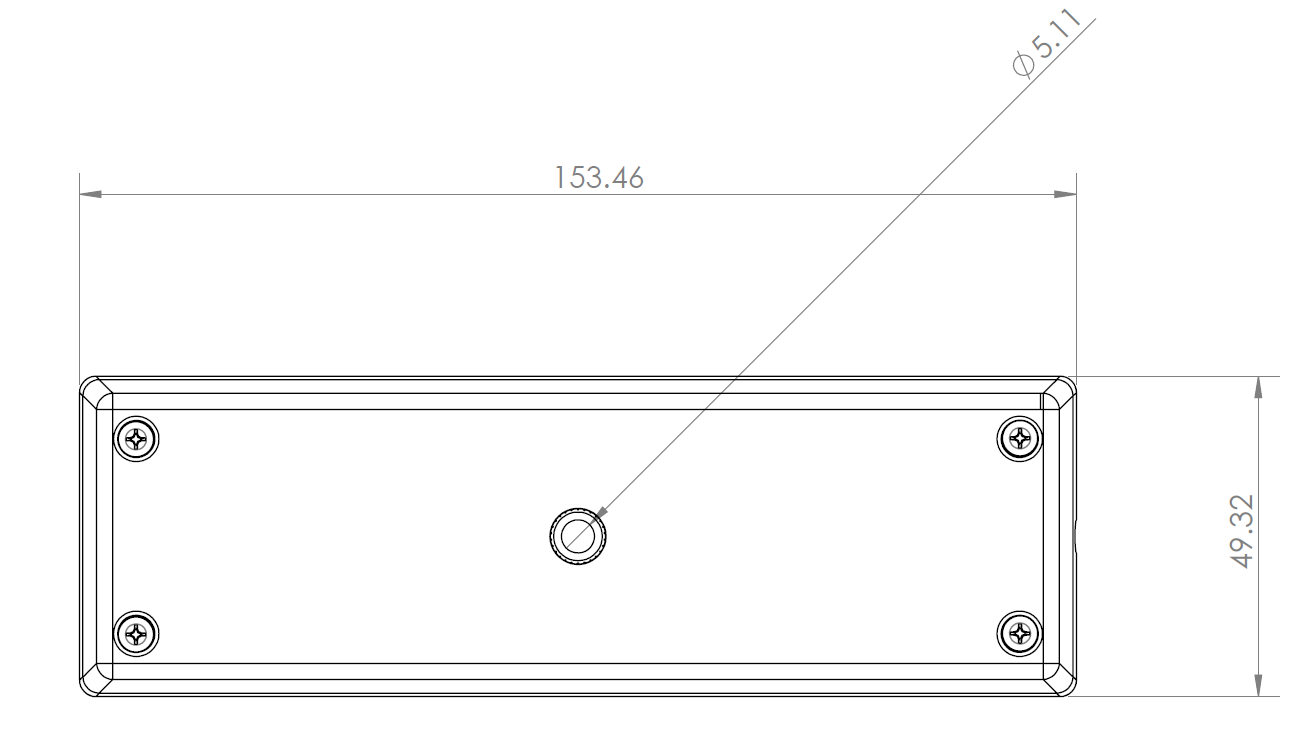

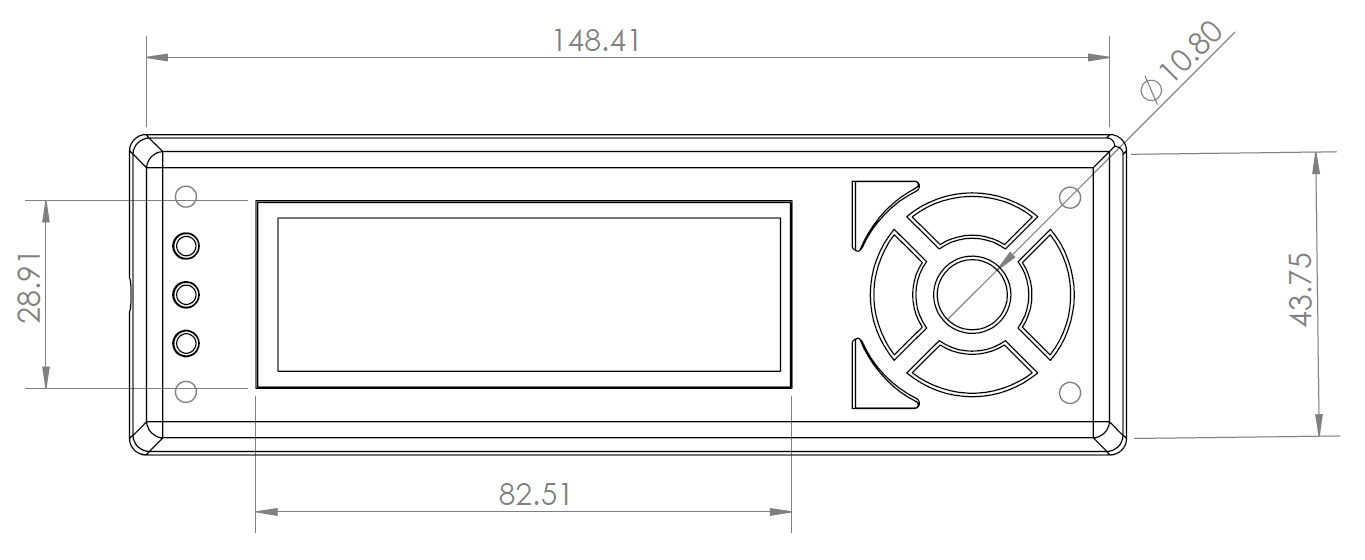

This section contains 2D drawings of the COMPUSHIFT display. All dimensions are in mm.
