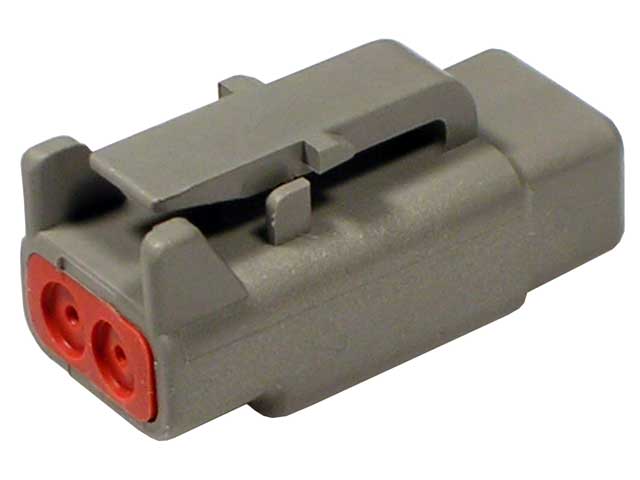

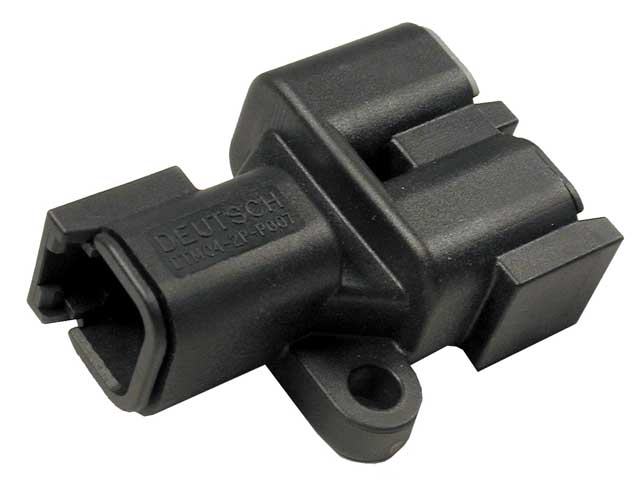

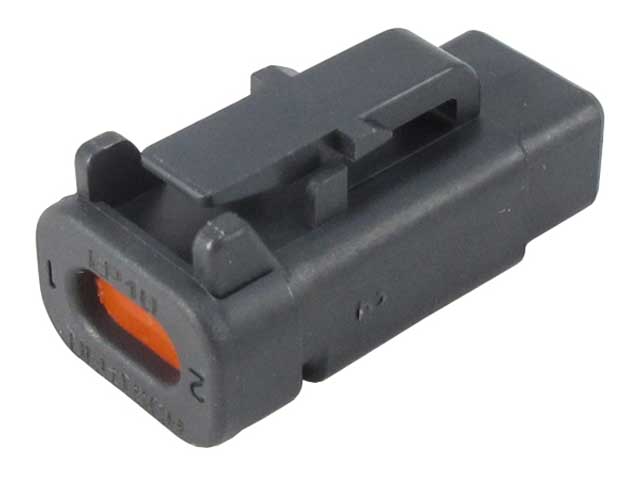

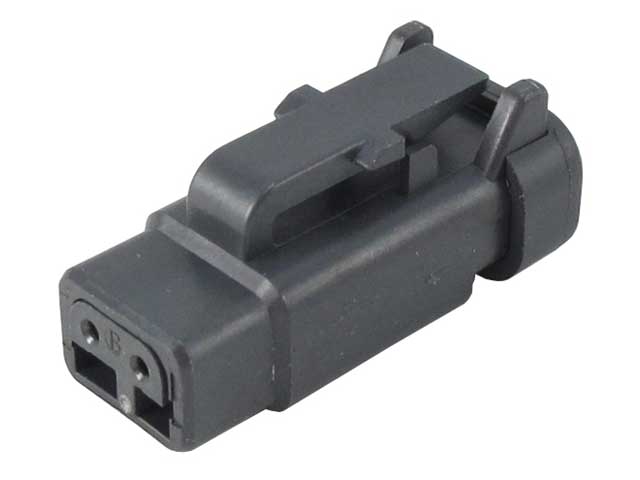

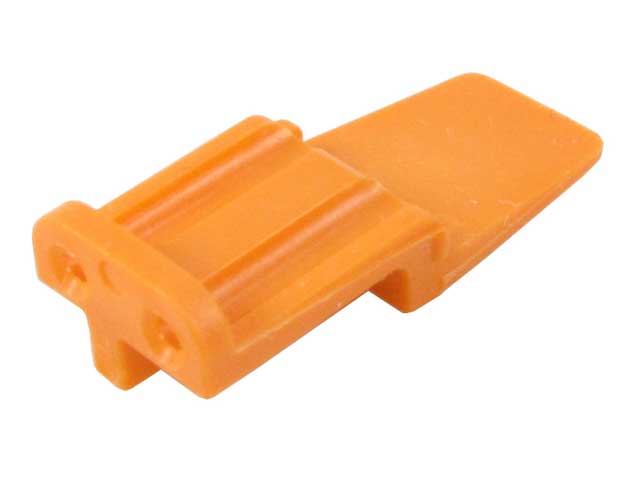

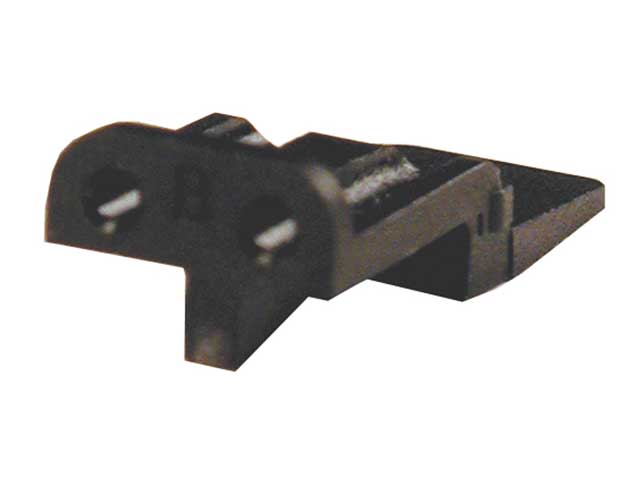

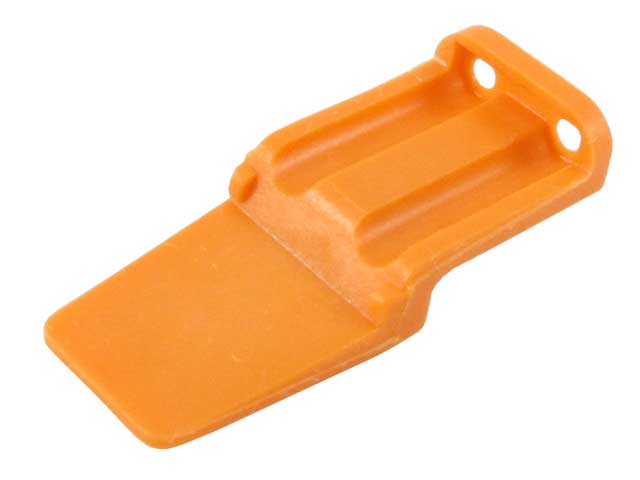

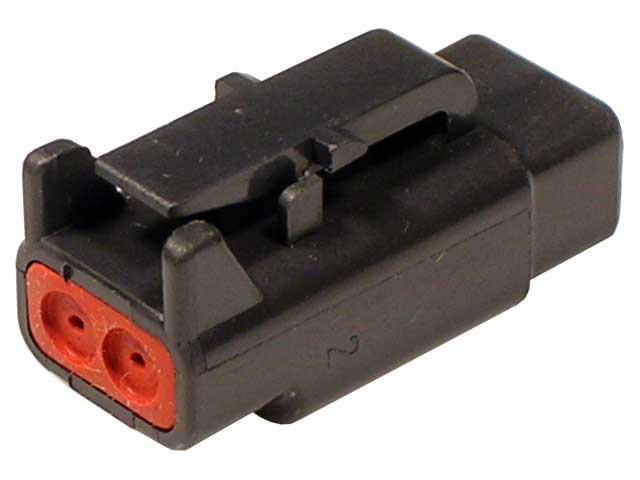

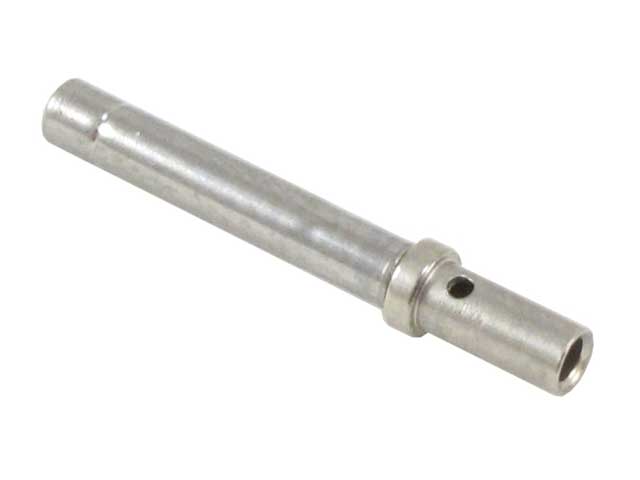

HGM Knowledge Base CAN Bus Current: Connectors Used In CAN Networks Connectors Used In CAN Networks Here's a brief listing of the connectors commonly used in CAN networks:DescriptionPhotoURL to Product CatalogGray male CAN connector from devices (CSII) to CAN network.Each connector requires one wedge lock and two pins.https://laddinc.com/product/?sku=DTM06-2SWedge lock for gray male CAN connector:https://laddinc.com/product/?sku=WM-2SBlack male CAN connector for main network.Each connector requires one wedge lock and two pins. https://laddinc.com/product/?sku=DTM06-2S-E004Wedge lock for black male CAN connector: https://laddinc.com/product/?sku=WM-2SBContacts for CAN connectors, 20 gaugehttps://laddinc.com/product/?sku=0462-201-20141CAN T connectorhttps://laddinc.com/product/?sku=DTM04-2P-P007CAN terminator.Two terminators are needed at either end of a CAN network.Each CAN terminator is 120 ohms.https://laddinc.com/product/?sku=DTM06-2S-EP10Related Articles Connecting COMPUSHIFT to Link G4+ ECUHGM CAN Bus MessagingHow to Modify A CAN Bus NetworkConnectors Used In CAN NetworksConnecting COMPUSHIFT to Edelbrock ProFlo 4Connecting COMPUSHIFT to Haltech EliteConnecting COMPUSHIFT to ECUMASTER EMU BlackConnecting COMPUSHIFT to AEM ECU's ×
