Installing Harness 35202 for a Nissan 350Z RE5 Shift Lever

This article advises how to install and connect a Nissan 350Z RE5 shift lever to a COMPUSHIFT Sport or COMPUSHIFT Pro controller. Note that the mate to the OEM connector on the shift lever is presently unavailable. We have provided a replacement connector that must be installed in place of the original in order to connect the shift lever.

Tools Required

• Small diagonal cut-off pliers.

• Small crimping pliers appropriate for the supplied terminals.

Instructions

• Identify the original connector, noting the wire colors and locations on the pinout chart below. Note that the original numbering strategy on the connector is somewhat unusual.

• Cut one wire from the original connector and crimp a single provided terminal onto that wire, crimping only the wire conductors avoiding the wire insulation.

• Note the key way on the terminal and connector, then install that terminal into the new connector in the corresponding pin number location.

• Repeat the process until you have installed all of the terminals.

• Close the retainer on the new connector to lock terminals in position.

• Plug the shift lever harness plug into the shift lever receptacle.

• Connect the shift lever harness to the main COMPUSHIFT harness.

• Be sure to connect the brake switch and interior lights to the labelled connections on the COMPUSHIFT harness.

Pinout

Original Connector

View into the back of the receptacle.

9 7 3 1
10 8 6 5 4 2

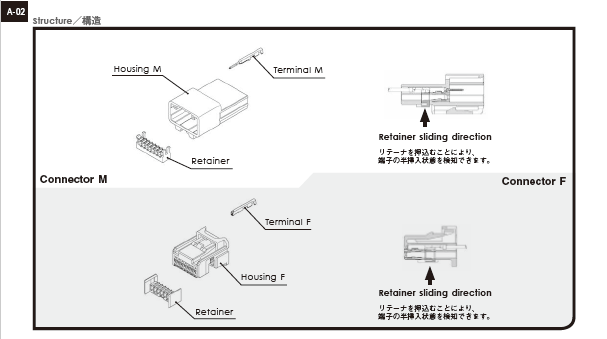

Provided Connector

View into the back of the receptacle.

1 2 3 4 5
6 7 8 9 10

Table of Connections

Provided Connectors Retainer Feature
