Connectors Used In CAN Networks

Detusch manufactures the DTM series of connectors that are especially useful in CAN networks. Their system assigns one color and keying to devices on the network, and a second color and keying to network segments. If you follow the standard, it’s easy to build custom, functional CAN networks without soldering and splicing.

Here listing of the Deutsch connectors and their function in the lineup.

Photo	Deutsch Part Number	Description / Use

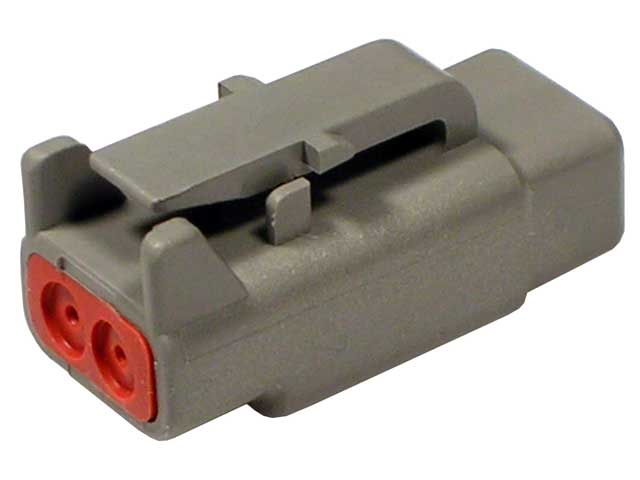

	DTM06-2S	Gray male plug connector from devices to CAN network. Each connector requires one wedge lock and two pins.
	WM-2S	Wedge lock for gray plug connector DTM06-2S

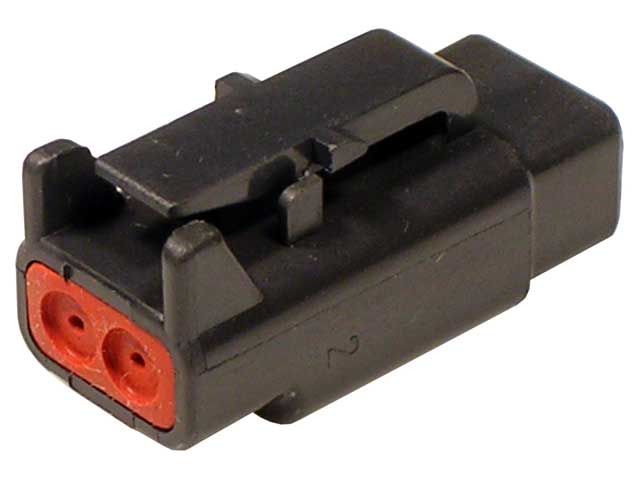

	DTM06-2S-E004	Plug connector for main CAN network segment. Each connector requires one wedge lock and two pins.

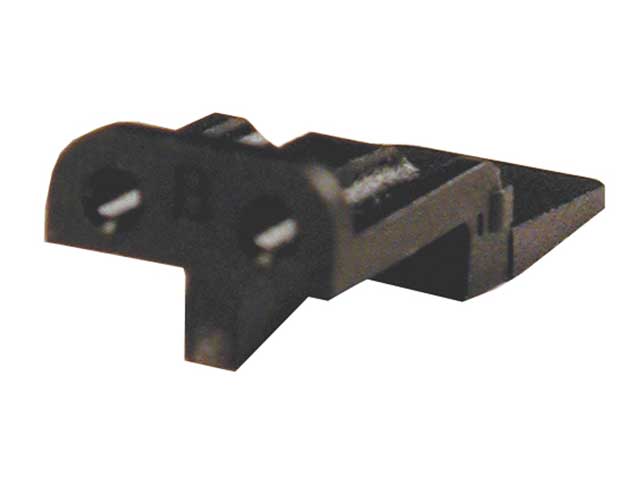

	WM-2B	Wedge lock for DTM06-2S-E004.
	1062-20-0122	Socket terminal for CAN connectors, 20 gauge. Reel fed style.
	1060-20-0122	Plug terminal for CAN connectors, 20 gauge, reel fed style.

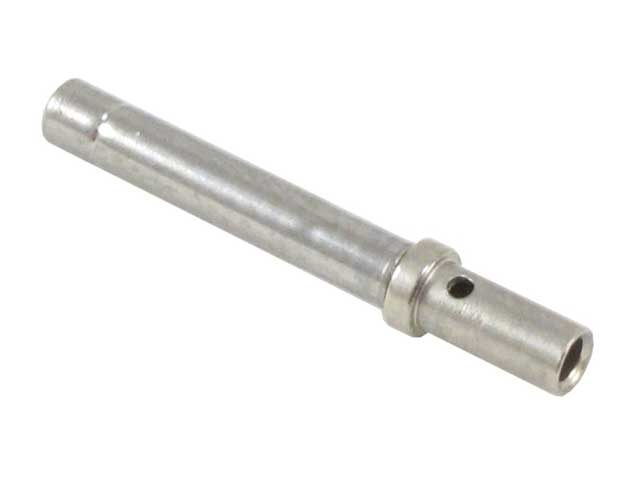

	0462-201-20141	Socket terminal for CAN connectors, 20 gauge, machined style
	0460-202-20141	Plug terminal for CAN connectors, 20 gauge, machined style
	DTM04-2P-P007	CAN T connector. This connects a single device to a network segment. Requires one gray DTM06-2S for the device, and two DTM06-2S-E004 for the network segments.

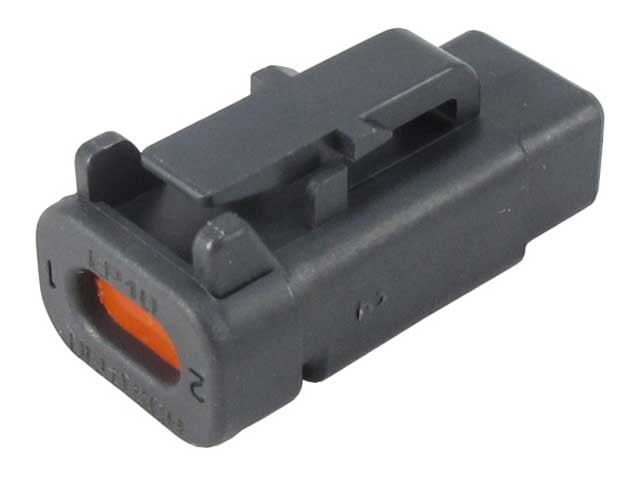

	DTM06-2S-EP10	CAN terminator. Two terminators are needed at either end of a CAN network. Each CAN terminator is 120 ohms.
	DTM04-2P-E004	Receptacle for CAN network segments.
	WM-2PB	Wedge lock for DTM04-2P-E004
